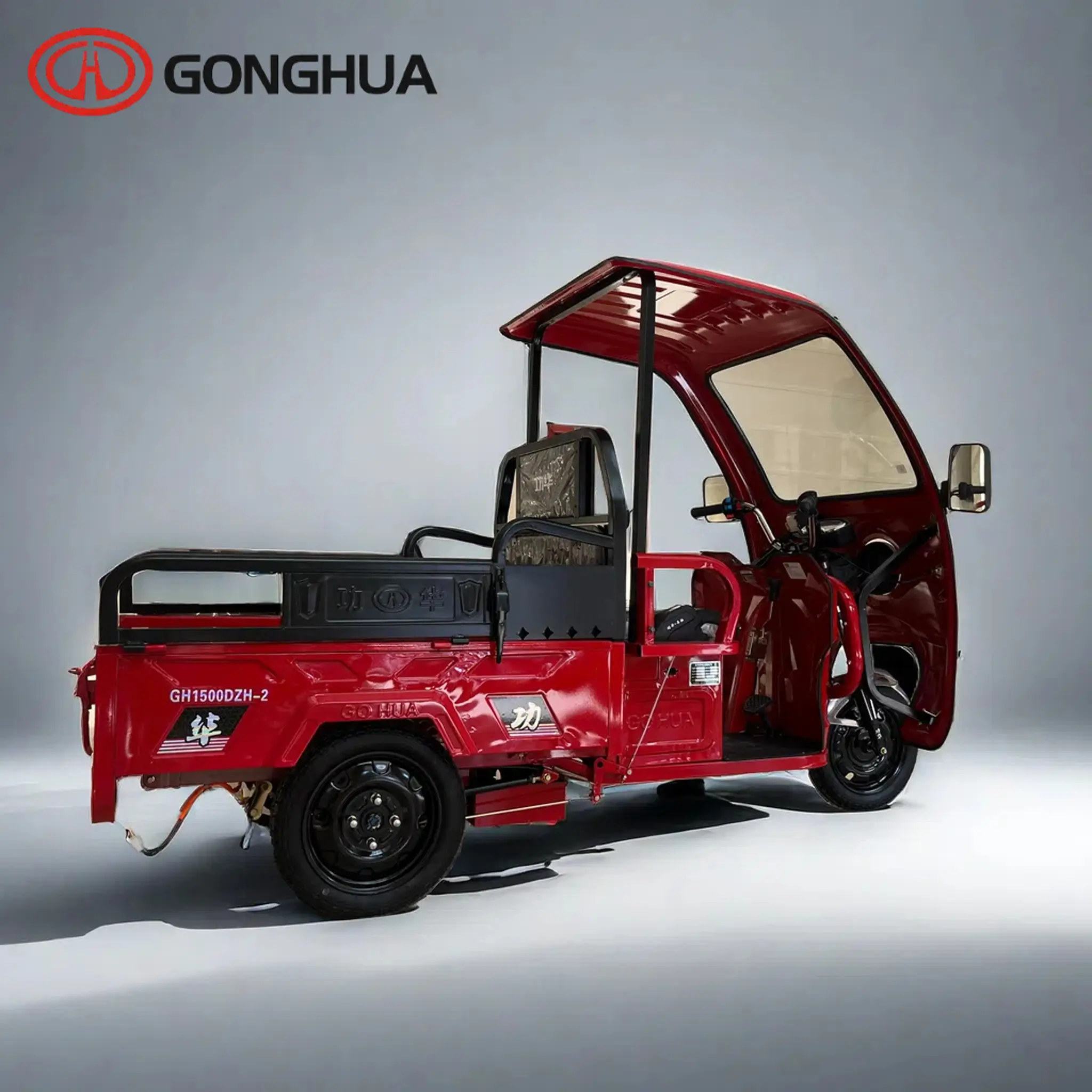

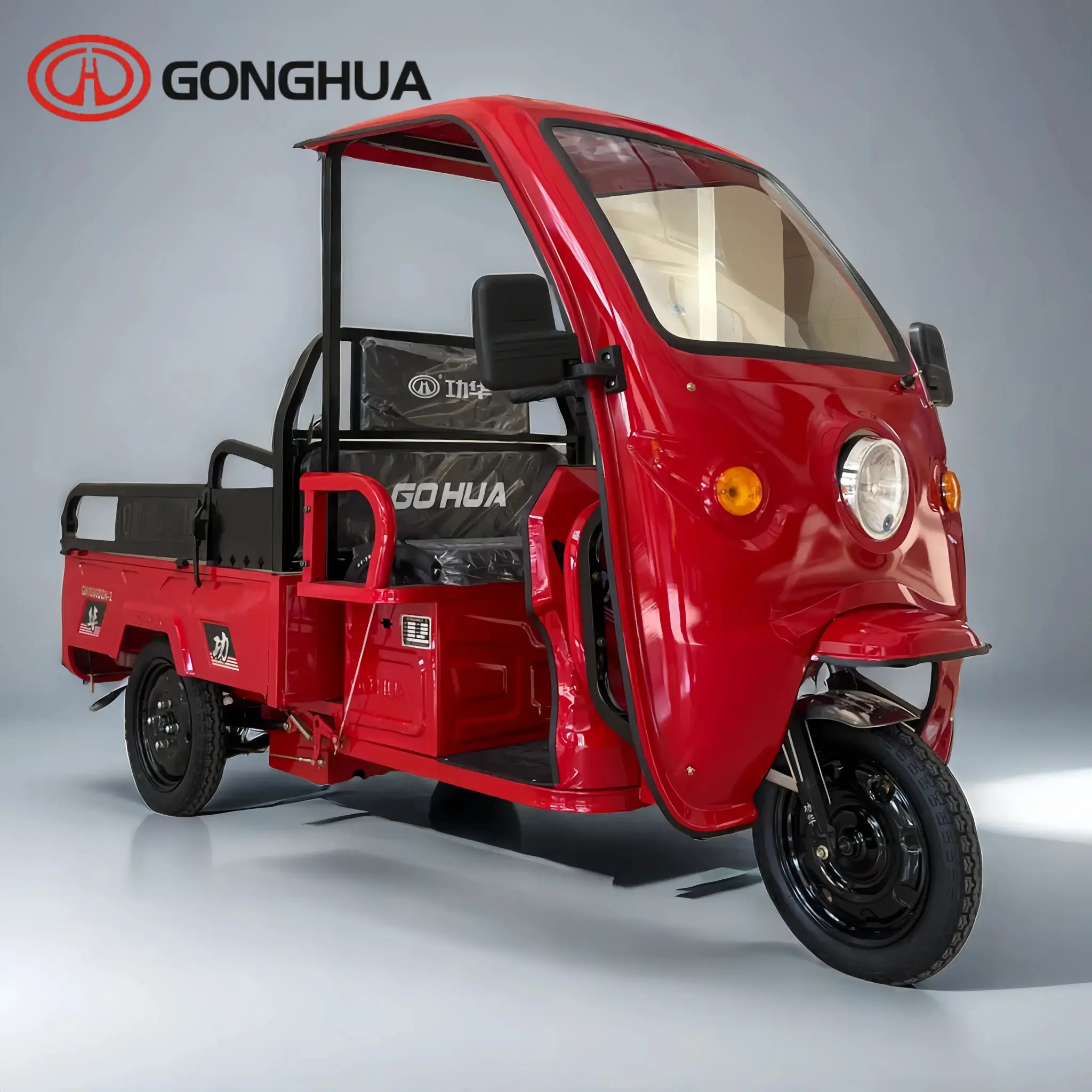

Electric Cargo Tricycle With Shed–PB 1.2M
- Superior Quality & Durable Materials
- Agility & Ease of Navigation：The flexibility of this tricycle means drivers can quickly adapt to various traffic conditions.
- High-Elasticity Seating for Enhanced Comfort

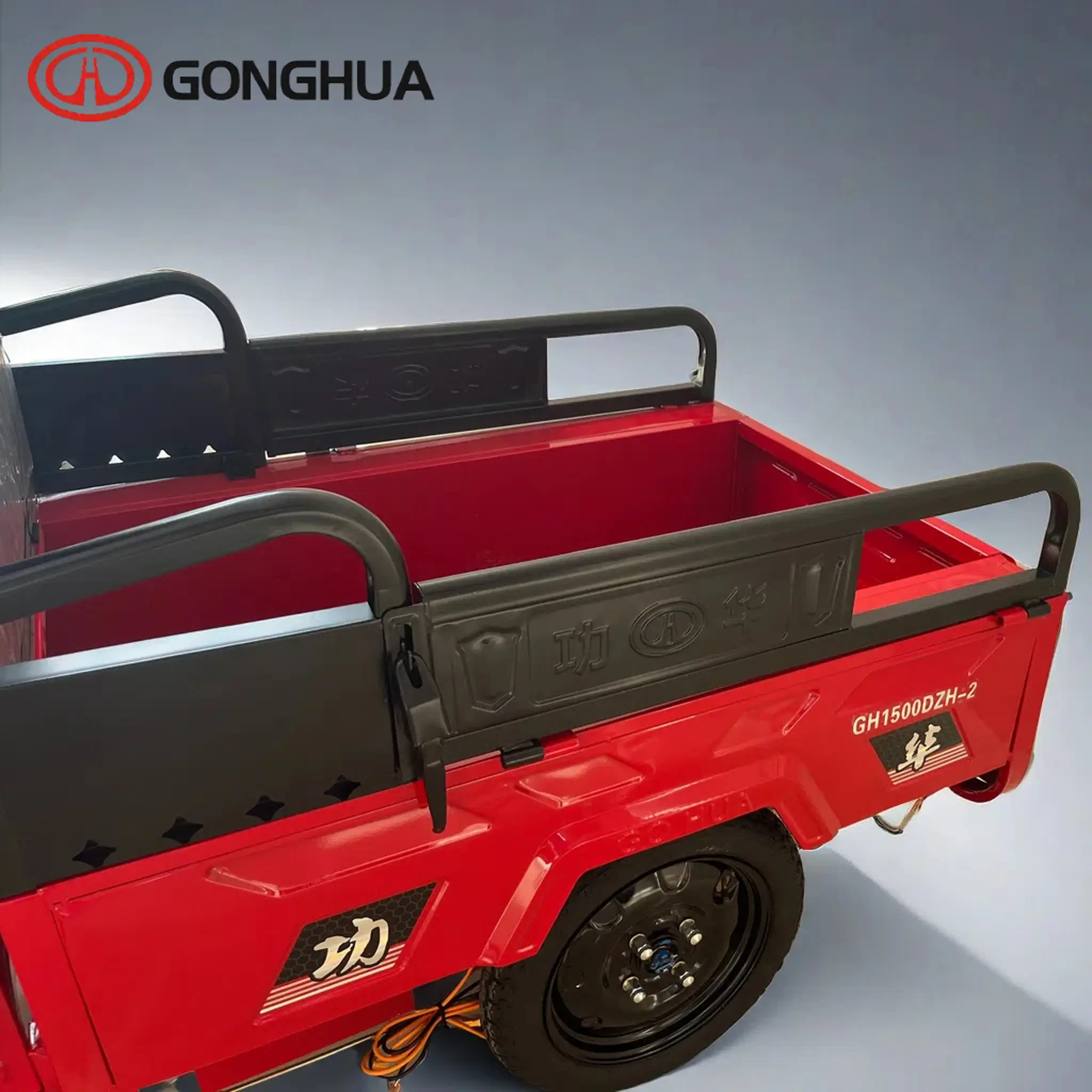

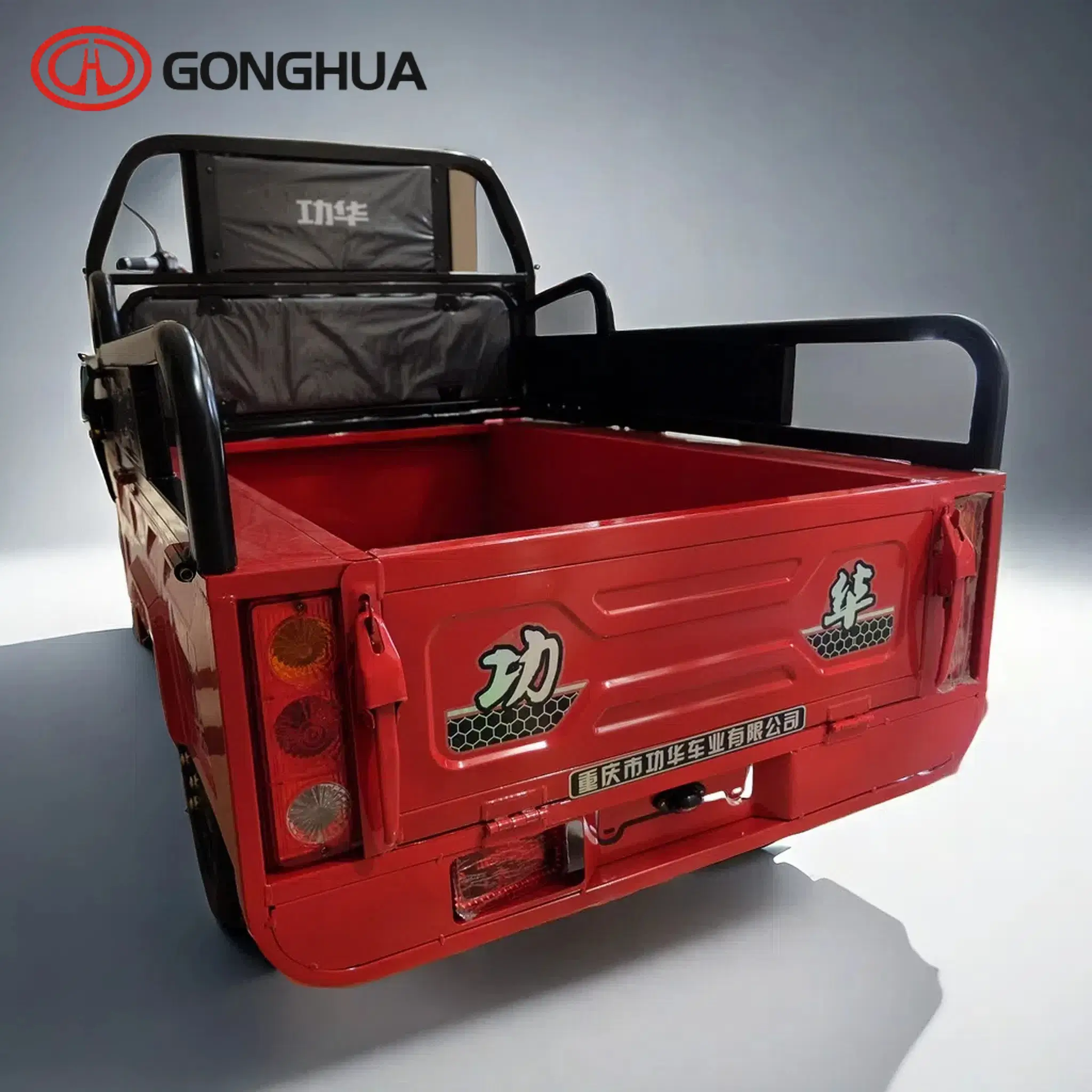

- Elevated Cargo Box Side Doors & Spacious Dimensions: With a generously sized cargo box measuring 0.9m by 1.2m, complemented by elevated side doors, this tricycle maximizes cargo capacity and accessibility. The raised side doors facilitate easy loading and unloading of goods
- Equipped with a simple canopy, one can travel freely even in windy or rainy weather.
| Vehicle Model | GH1500DZH-17 |
| Vehicle Name | Electric Cargo Tricycle With Shed–PB 1.2M |
| Overall Dimensions（mm) | 2645*990*1660 |
| PMSM Motor | 1000-1500w |
| Battery | 60V 45AH Lead-acid |
| Contorller | 18-24G |
| Endurance mileage (km) | 60-80 |
| Min. ground clearance(mm) | ≥150 |
| Min. turning radius(mm) | ≤ 4 |
| Max. speed(km/h) | 38 |
| Max.climbing slope(%) | ≤ 15 |
| Economic speed range(km) | 32 |
| Front/rear tire specifications | 3.00-12 FR/RR: 3.00-12 |
| Rimtype | Front/Rear: Iron wheel |
| Rear axle structure | Conical integrated rear axle |
| Brake type | Front and rear drum brake |
| Parking brake | Handbrake |
| Front shock absorption | φ31 Inner spring Drum shock absorber |
| Rear shock absorption | 4 pieces steel plate |
| Curb weight(kg) | 190 |
| Gross vehicle weight(kg) | 475 |
| Persons in cab(persons) | 225 |
| Wheel base(mm) | 1790 |
| Rear wheel track(mm) | 800 |
| Vehicle light | LED |
| Indicator panel | LCD |
