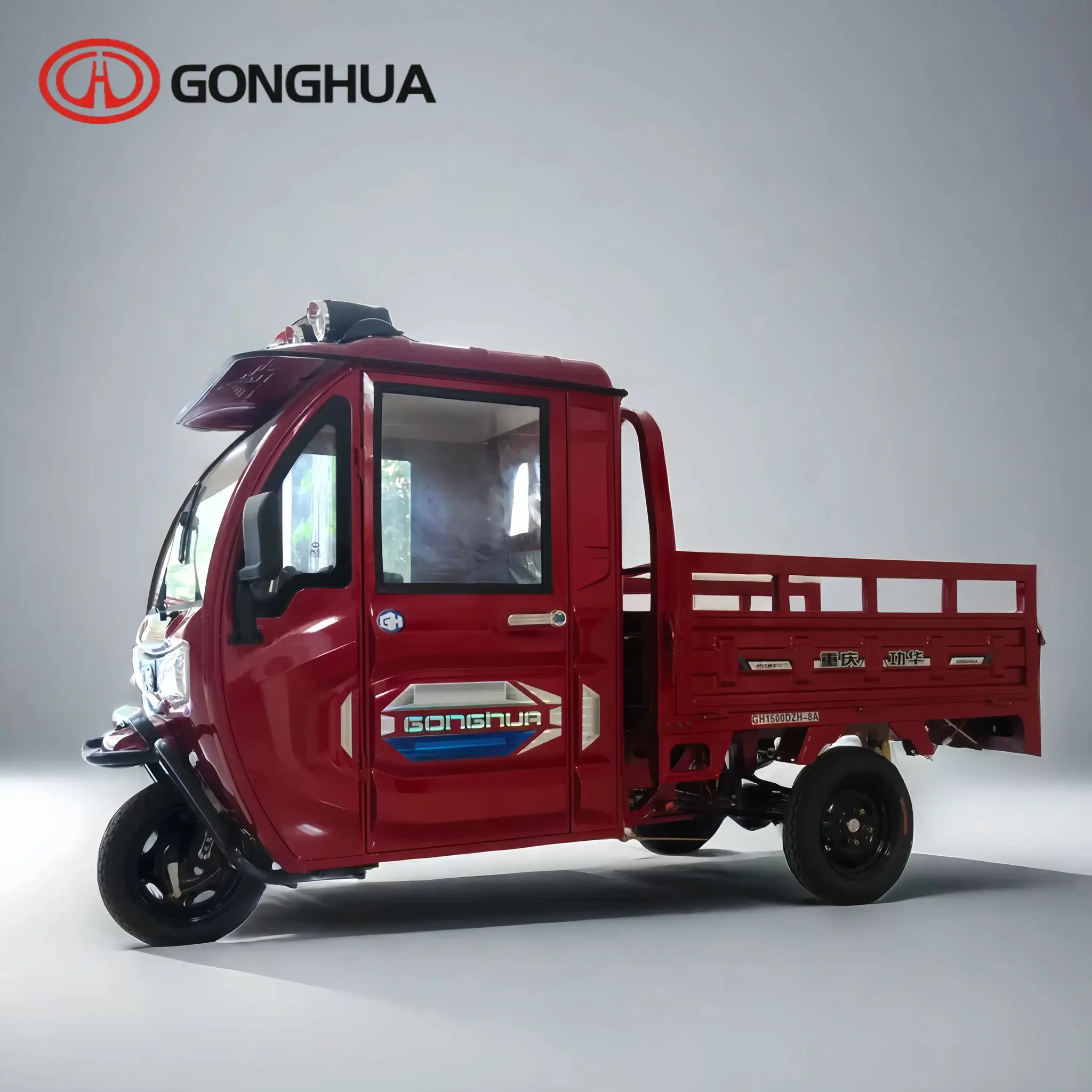

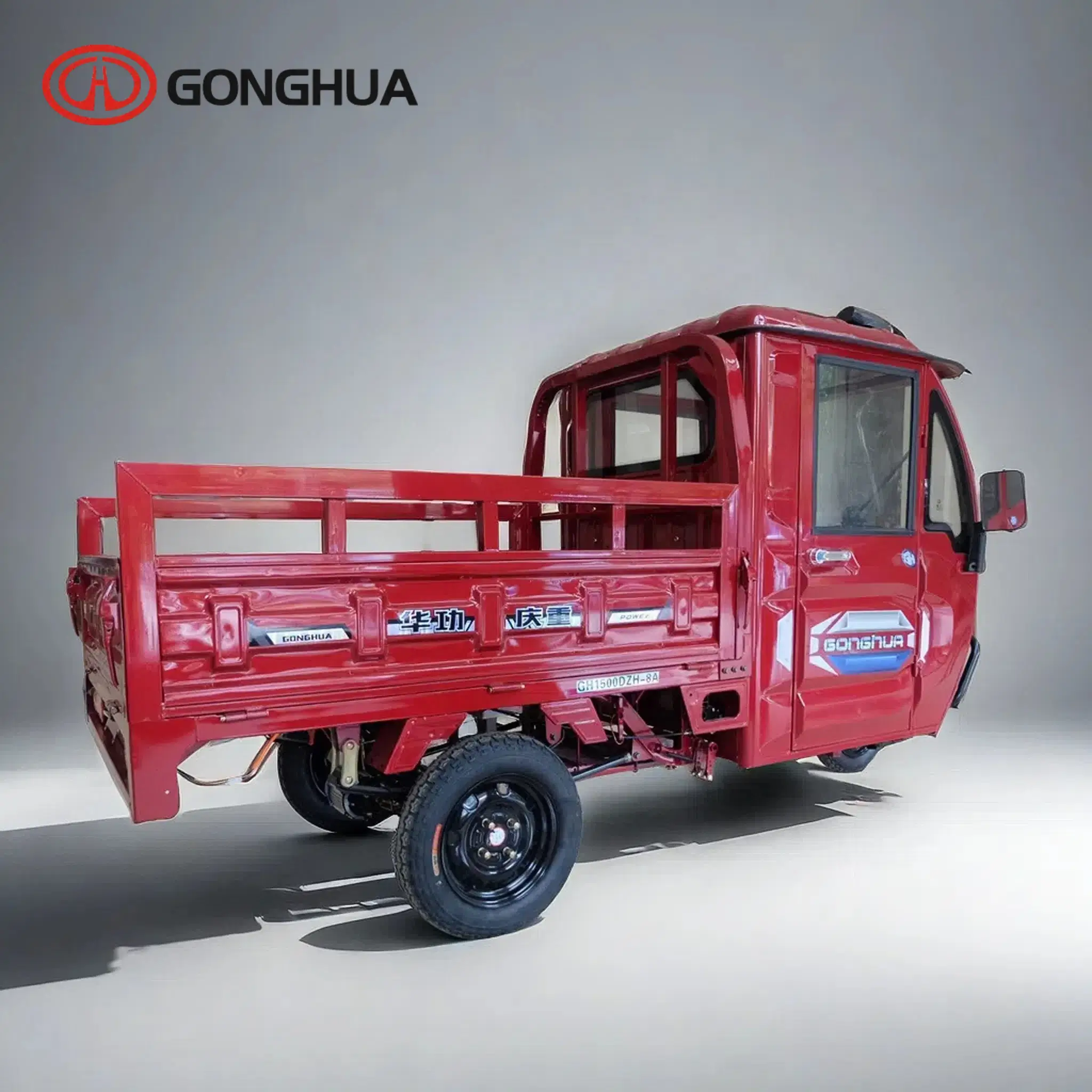

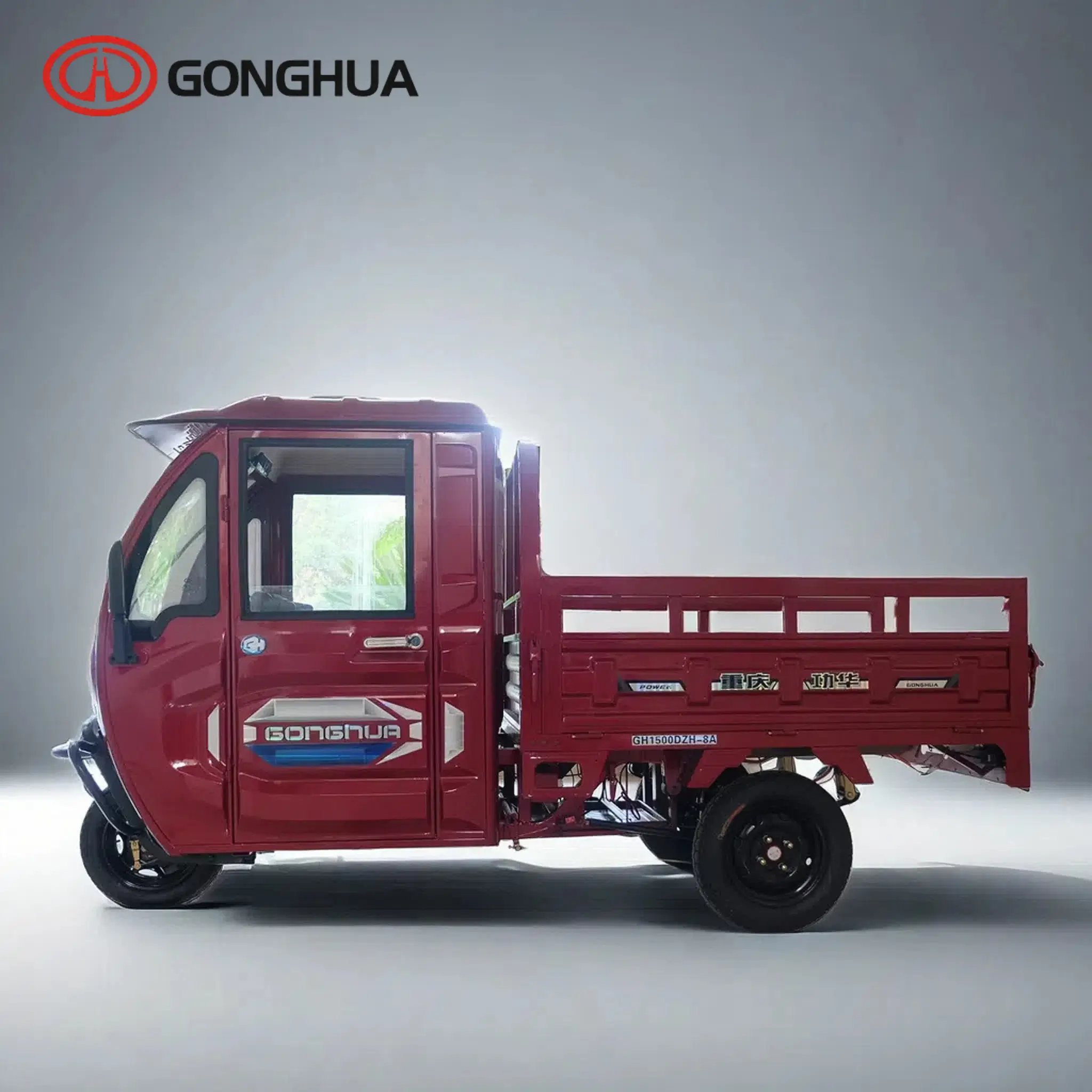

Semi-enclosed Cab Tricycle BP 1.6M
The Semi-Covered 1.6m Cargo Tricycle boasts the following key advantages:

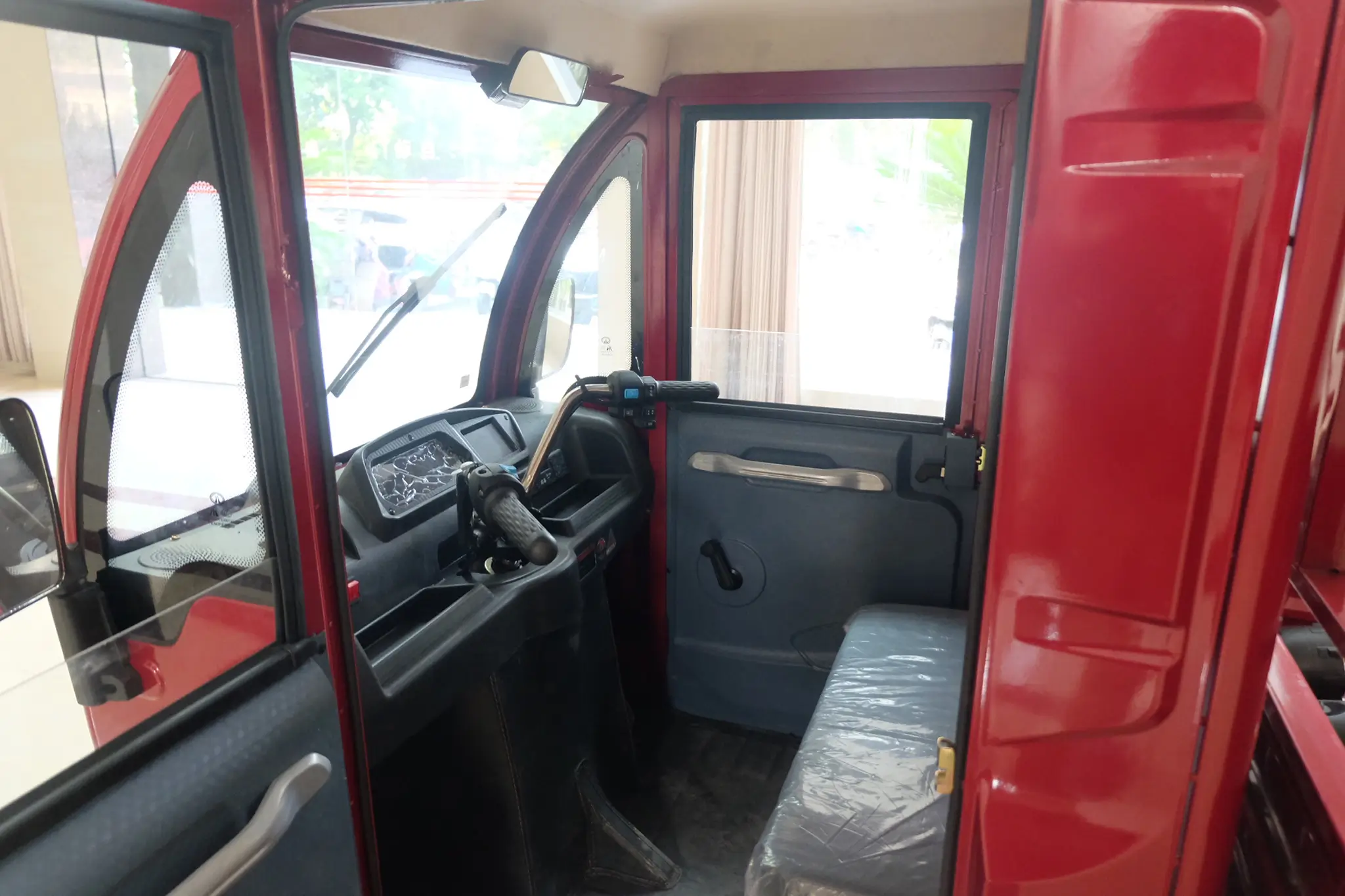

- Semi-Enclosed Cab – Offers a comfortable and sheltered driving environment, protecting against wind, rain, and other elements.

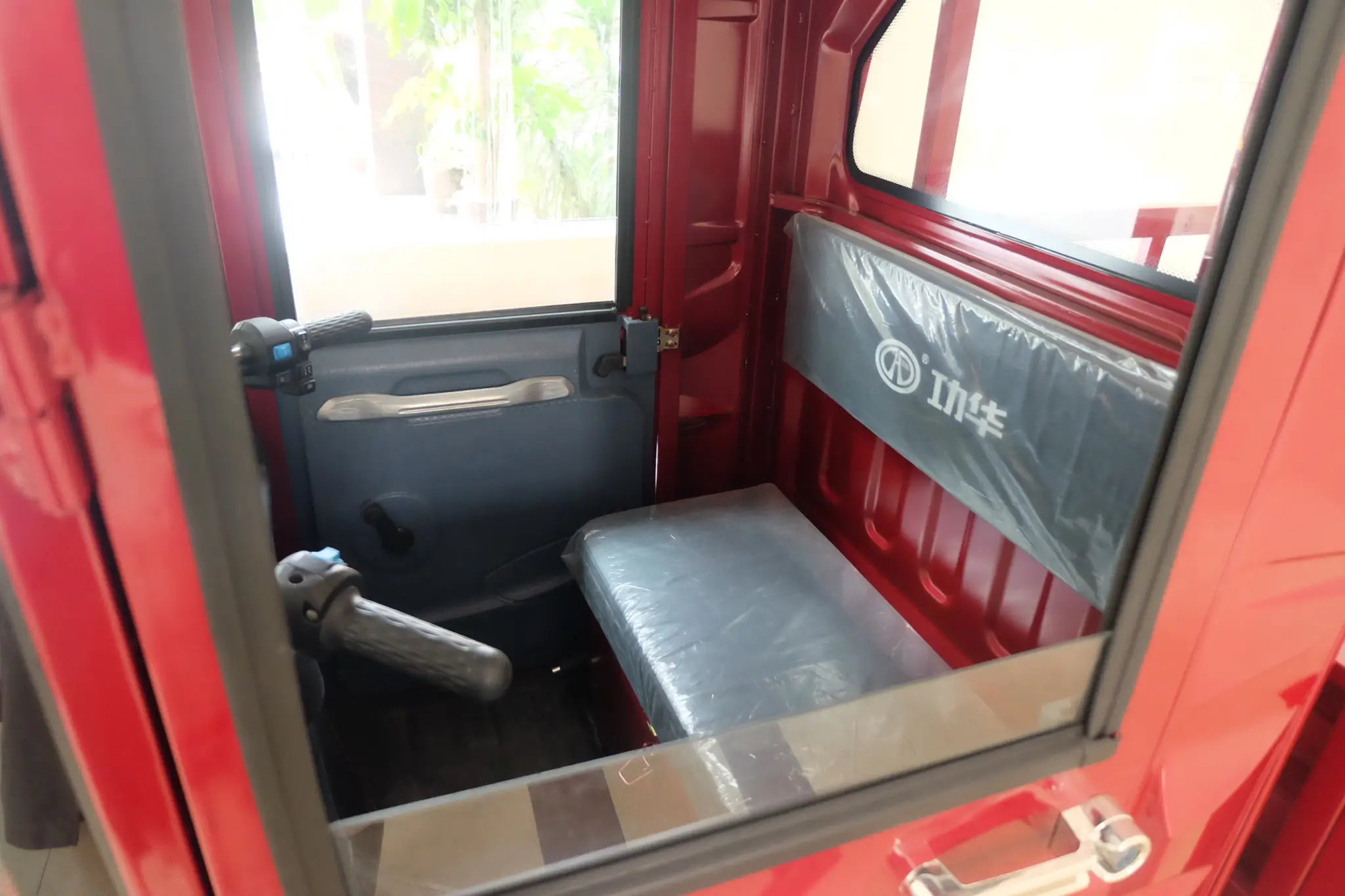

- Spacious & Durable Design – Boasts a wide and cozy interior, constructed with high-quality materials for exceptional rigidity and longevity.
- Advanced Smart Controller – Equipped with intelligent features that facilitate controlled descent on steep inclines, ensuring a safer ride.

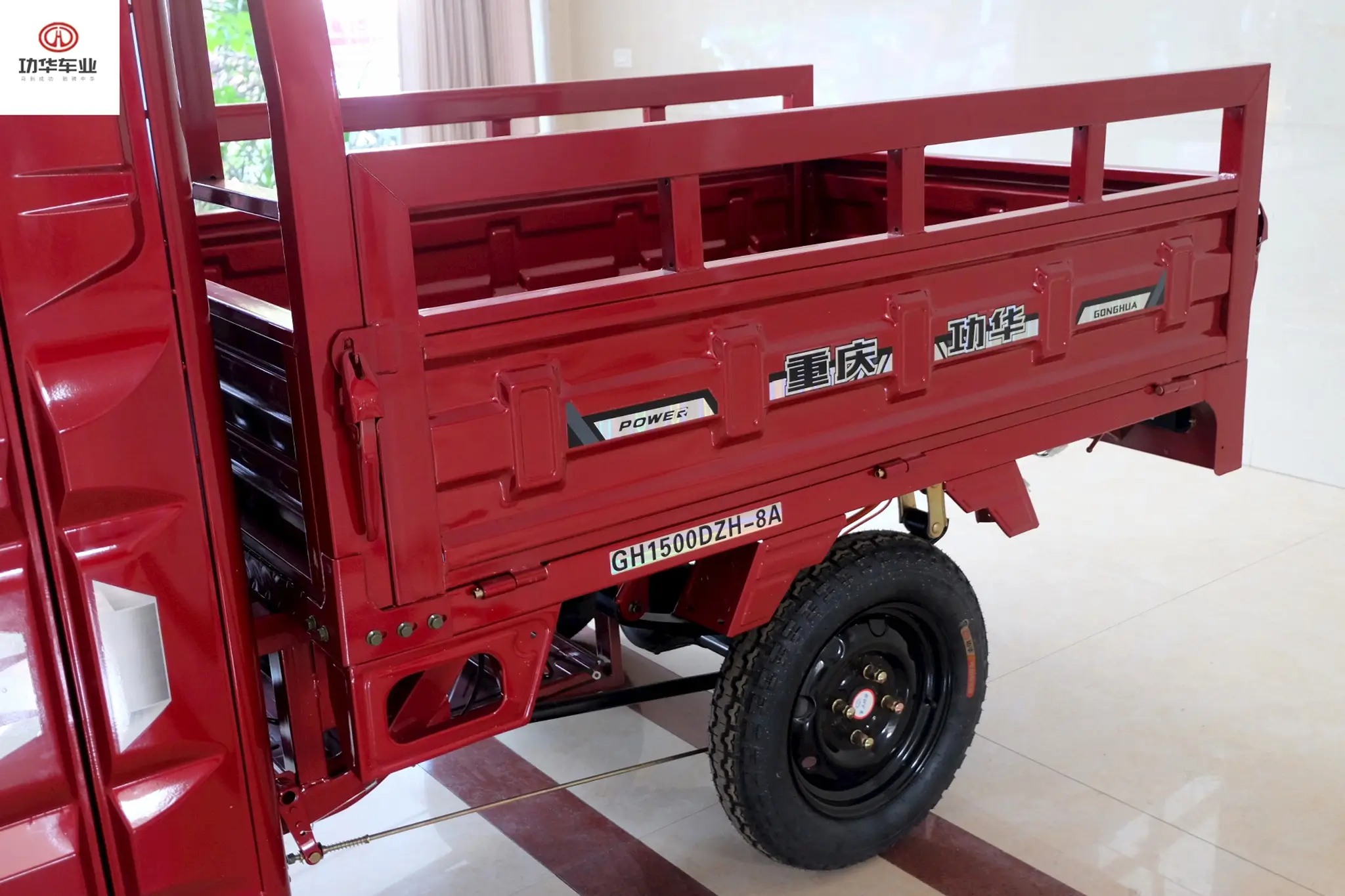

- Elevated Cargo Box with Enhanced Access – Features 47cm-high side doors and a spacious 1.1m*1.6m cargo box, capable of carrying heavy loads with ease.

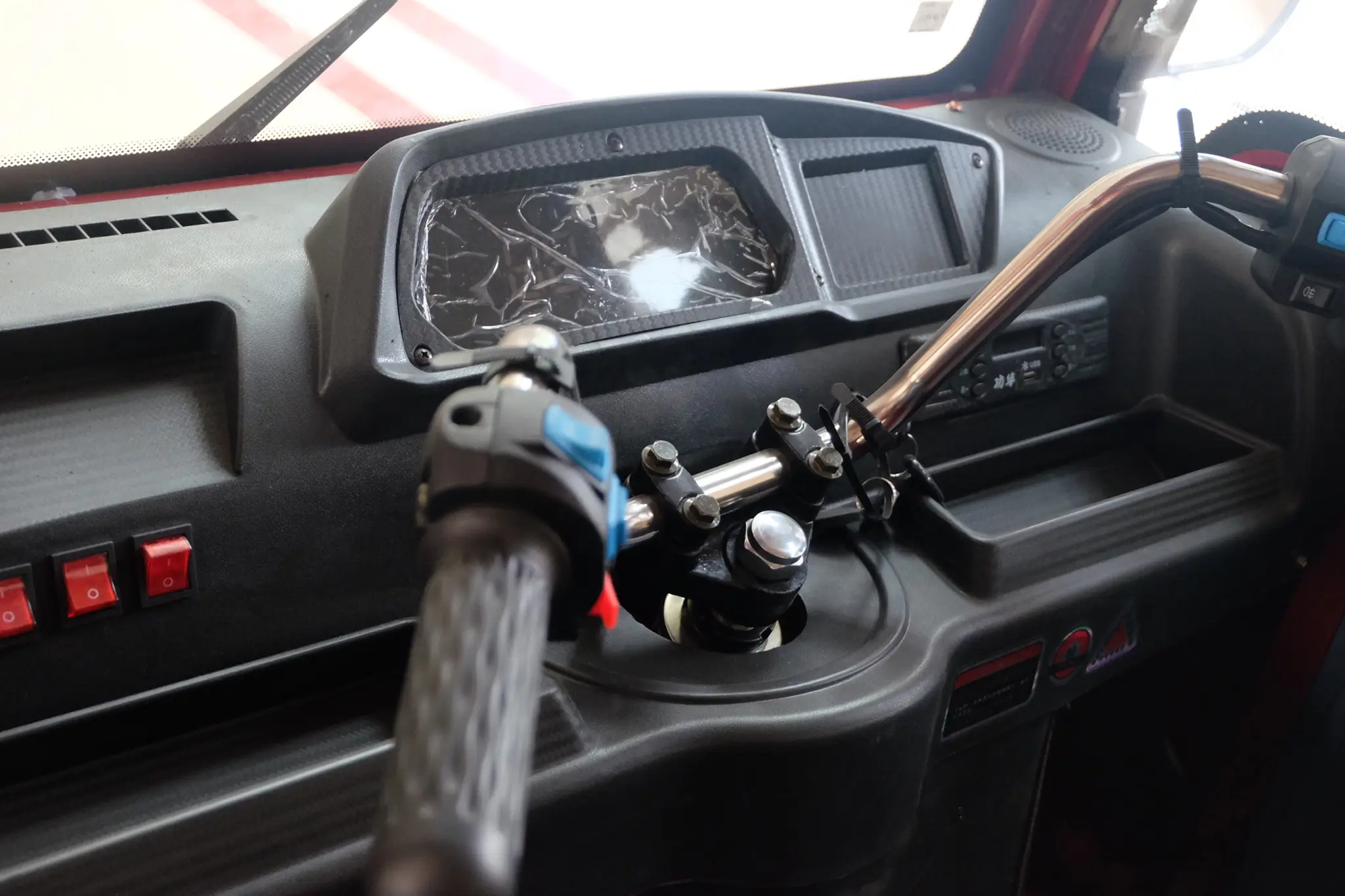

- Modern Convenience Features – Includes Bluetooth multimedia player, cup holders, and water-spray wipers, enhancing the practicality and enjoyment of the driving experience.
| Vehicle Model | GH1500DZH-8A |
| Vehicle Name | Semi-enclosed Cab Tricycle BP 1.6M |
| Overall Dimensions（mm) | 3100*1171*1710 |
| PMSM Motor | 1200-2200w Lead-acid |
| Battery | 60V 45AH |
| Contorller | 18-24G |
| Endurance mileage (km) | 60-80 |
| Min. ground clearance(mm) | ≥150 |
| Min. turning radius(mm) | ≤ 4 |
| Max. speed(km/h) | 38 |
| Max.climbing slope(%) | ≤15 |
| Economic speed range(km) | 32 |
| Front/rear tire specifications | 3.50-12/4.00-12 FR: 3.50-12/RR: 4.00-12 |
| Rimtype | Front/Rear: Iron wheel |
| Rear axle structure | Half floating/fully floating rear bridge |
| Brake type | Front and rear drum brake |
| Parking brake | Handbrake |
| Front shock absorption | φ37 Outer spring Drum shock absorber |
| Rear shock absorption | 5 pieces steel plate |
| Curb weight(kg) | 300 |
| Gross vehicle weight(kg) | 512 |
| Persons in cab(persons) | 150 |
| Wheel base(mm) | 2000 |
| Rear wheel track(mm) | 940 |
| Vehicle light | LED |
| Indicator panel | LCD |
